  • HiPo MPP-96 Microplate Photometer

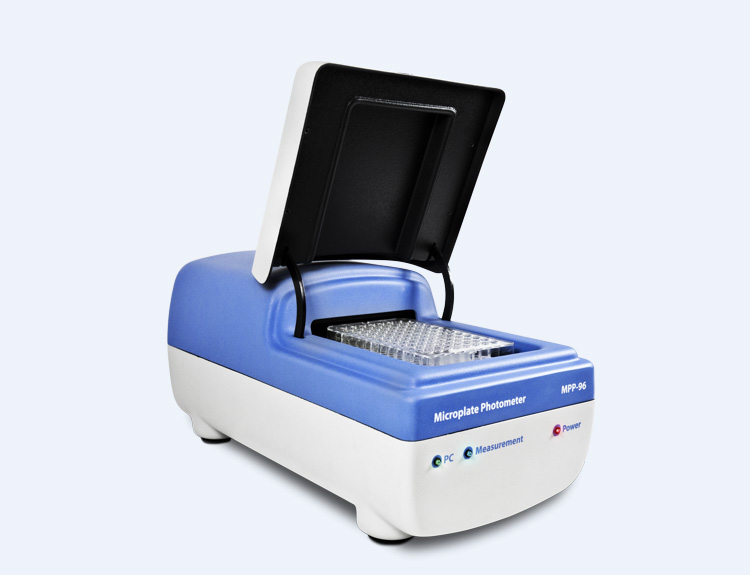

HiPo MPP-96 Microplate Photometer

Microplate Photometer HiPo MPP-96 is a compact tabletop device for measuring the results of ELISA and microbiological studies in 96-well microplates. Photometer is controlled and outputs data via computer. The device is supplied with specialized software QuantAssay.

Microplate Photometer HiPo MPP-96 is compatible with IDEXX xChekPlus™ software.

Features of QuantAssay software:

  • ELISA assays of any complexity can be carried out via robust assay editor with help of Assay Wizzard
  • Quantitative assay includes up to 20 standards
  • Avidity/Affinity assays
  • Multiplex assays with up to 7 assays on one plate
  • Qualitative assay includes up to 11 controls
  • BestFit function for selecting the best calibration curve
  • User friendly interface: get your results in 3 clicks
  • Save, load and export results
  • Creates visual reports

Accuracy (405, 450, 492, 620 nm)

0.000 – 2.000 OD    ≤ (0.5 % ± 0.010 OD) typical
2.000 – 3.000 OD    ≤ (1 % ± 0.010 OD) typical

Precision / Reproducibility (405, 450, 492, 620 nm)

0.000 – 2.000 OD    ≤ (0.5 % ± 0.005 OD)
2.000 – 3.000 OD    ≤ (1.0 % ± 0.005 OD)

* - up to 4 custom filters can be fitted on demand


Specification

Detection mode Absorbance
Light source LED, self-calibrating
Photodetector 8 silicon photodiodes
Plate type 96-well microplates (including strip-well microplates)
Reading speed 5-8 s per wavelength
Measurement modes Endpoint, kinetic and multi-label measurements
Measurement channels 8
Reference channel 1
Measurement range (max) 0 – 4.3 OD (with standard preinstalled filters 0-3.5 OD)
Resolution 0.0001 OD
Wavelength range 400 – 700 nm
Wavelength selection up to 8* filters on wheel standard filters 405, 450, 492 and 620 nm
Shaking speed control range 4 amplitudes, 4 speeds
Software QuantAssay
Reader is compatible with IDEXX xChekPlus software
PC system requirements: Intel/AMD Processor, 1 GB RAM, Windows Vista/7/8/10, USB
Dimensions (W×D×H) 140 х 300 х 130 mm
Weight 4.6 kg
External power supply Input AC 100–240 V 50/60 Hz, Output DC 12 V
